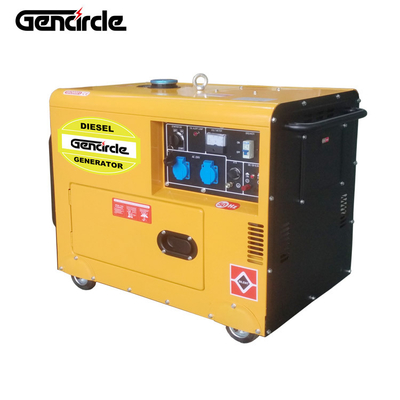

Portable 6kw 3phase air cooled diesel generator set 7.5kva silent with ATS switch 15L fuel tank

4.0 Sets
MOQ
Portable 6kw 3phase air cooled diesel generator set 7.5kva silent with ATS switch 15L fuel tank
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: 6kw Generator Price
Rated Voltage: 110/120/220/230/380/400 Volts
Rated Current: 20--200Amps
Speed: 1500rpm Or 1800rpm
Frequency: 50HZ/60HZ
Engine Type: Air Cooled Engine
Fuel Tank Capacity: 15L Fuel Tank
Warranty: 1 Year
Color 6kw Generator Price: White /Blue /Yellow /Red/Grey /Green
Type 6kw Generator Price: Open / Silent
Cylinder Number: Single Cylinder
Alternator: Brush Alternator
Options System: ,ATS ,Remote System
Digital Control Panel: Electric Control Panel
Certificate 6kw Generator Price: ISO9001:2008 / CE ,BV
Basic Infomation
Certification: ISO9001:2008 / CE ,BV
Model Number: 6kw generator price
Payment & Shipping Terms
Packaging Details: 6kw generator price packaged by : strong shipping cartons
Supply Ability: 1000 Set/Sets per Month 6kw generator price
Product Description

Technical Datasheet :

Model JDE3500SE JDE6500SE JDE7500SE JDE8500SE JDE9500SE
Rated frequency (Hz) 50 60 50 60 50 60 50 60 50 60
Rated output (kVA) 2.8 3.3 4.5 5.0 5.0 5.5 5.5 6.0 6.0 6.5
Max. output (kVA) 3.2 3.8 5.0 5.5 5.5 6.0 6.0 6.5 6.5 7.0
Rated Voltage (V) 230 120/240 230 120/240 230 120/240 230 120/240 230 120/240
Rated current (A) 12.2 27.5/13.8 19.6 41.7/20.8 21.7 45.8/22.9 23.9 50/25 26 54/27
Rated rotation speed ) 3000 / 3600 rpm
Phase NO. Single phase Single phase Single phase Single phase Single phase
Excitation mode Self-excitation & constant voltage (AVR)
Receptacle Two receptacles Two receptacles Two receptacles Two receptacles Two receptacles
Noise level(7m)dB(A) 60 60 65 65 65
Structure type Silent frame Silent frame Silent frame Silent frame Silent frame
Engine Model KM178FG KM186FAG KM188FG KM188FG KM192FG
Engine Type Single cylinder, vertical, four-stroke, direct injection,air-cooled
Rated power [KW/(r/min)] 3.68/3000 4.0/3600 5.7/3000 6.3/3600 7.5/3000 8.2/3600 7.5/3000 8.2/3600 8.0/3000 9.2/3600
Compression ratio 20:01 19:01 19:01 19:01 19:01
Lubrication system Pressure splashed Pressure splashed Pressure splashed Pressure splashed Pressure splashed
Starting system Electric Start Electric Start Electric Start Electric Start Electric Start
Fuel type 0#(summer)-10#(winter)-35#(chillness)diesel
Lube oil brand CD grade or SAE10W-30,15W-40
Lube capacity (L) 1.1 1.65 1.65 1.65 1.65
Charging generator capacity (V-A) 12V 3A 12V 3A 12V 3A 12V 3A 12V 3A
Battery capacity (V-Ah) 12V 36Ah 12V 36Ah 12V 36Ah 12V 36Ah 12V 36Ah
Fuel tank capacity (L) 13.5 13.5 13.5 13.5 13.5
Continuous running time (hr) 8.5 5.5 5.5 5.5 5.5
Packing size MM 930×530×740
G.Weight 155 160 163 165 170
Loading quantity @ 20GP 72 pcs 72 pcs 102 pcs 72 pcs 72 pcs

Engine and Alternator Deails :

Our Genreator is Easy Operated
