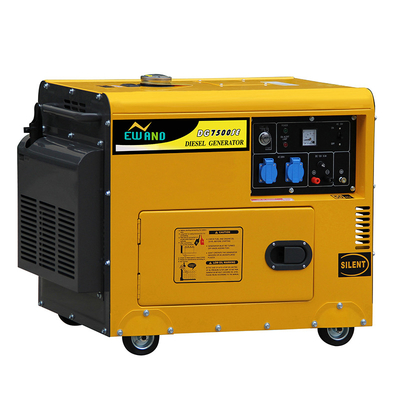

Model | DG7500SE | ||||
GENERATOR | Frequency (HZ) | 50 | 60 | ||
Max.output (KW) | 6 | 6.5 | |||
Rated output(KW) | 5.5 | 6 | |||
Rated AC Voltage(V) | 220/380,230/400,240/415 | ||||
Power Factor | 1 | 0.8 | |||
DC output (V) | 12V/8.3A | ||||
Phase | Three Phase | ||||
Alternator Type | Self-excited,2-pole alternator | ||||
Starting System | Electric | ||||
Noise Level (Dba/7m) | 68-72 | ||||
Fuel Tank Capacity (L) | 16 | ||||
Continuous Running Time (hr) | 9 | 7.8 | |||
ENGINE | Engine Model | 188F | |||
Engine Type | single-cylinder, vertical,4-stroke air-cooled diesel engine | ||||
Bore×Stroke | 88×75 | ||||
Fuel Consumption rate (g/kw/h) | ≤280 | ||||
Fuel | 0# or -10# light diesel oil | ||||
Lubrication Oil Volume (L) | 1.65 | ||||
Combustion System | Direct Injection | ||||
STANDARD FEATURES | Voltmeter | YES | |||
AC Output Socket | 2 | ||||
AC Circuit Breaker | YES | ||||
Oil warning Light | YES | ||||
Oil Alert | YES | ||||
OPTIONAL FEATURES | Universal wheel | OPTIONAL | |||
Multifunctional digital meter | OPTIONAL | ||||
ATS | OPTIONAL | ||||
Remote control | OPTIONAL | ||||
Welding | OPTIONAL | ||||
DIMENSIONS | Packing dimention(LxWxH)(cm) | 95x56x76 | |||
Gross Wright(kgs) | 156 | 155 | |||
20FT loading (pcs) | 72 | 54 | |||
40HQ loading (pcs) | 144 | 108 | |||
