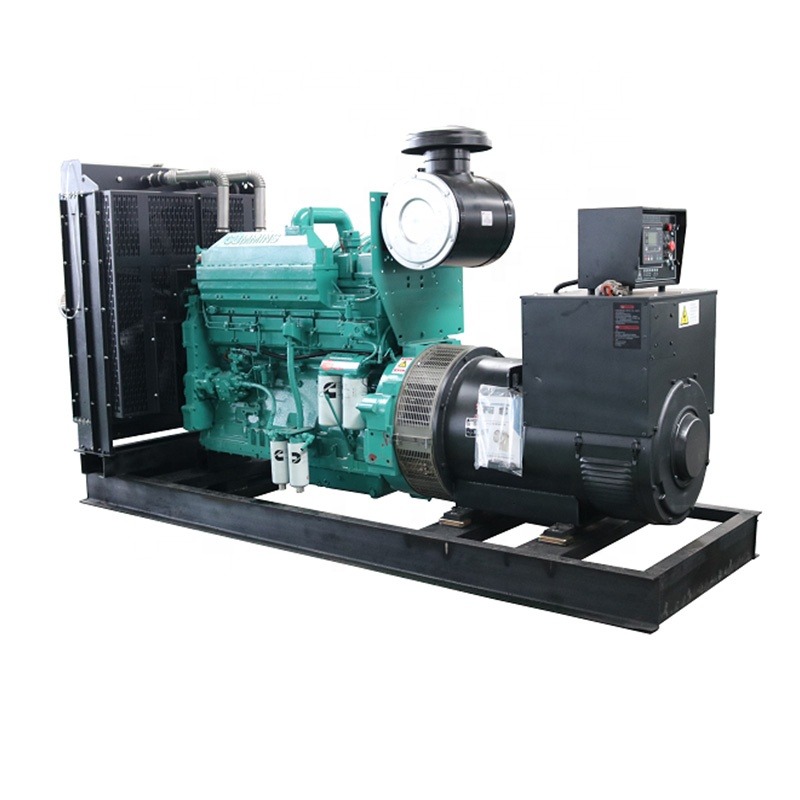

400kw 500kva Super Silent Generator Diesel With Famous Engine YAG-400GF

1 Set
MOQ
$43,000.00(>=1 Sets)
Price
400kw 500kva Super Silent Generator Diesel With Famous Engine YAG-400GF
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year Or 1000 Hours
Certification: CE
Model Number: YAG-400GF
Rated Voltage: 110-480V
Rated Current: 720A
Speed: 1500/1800rpm
Frequency: 50/60HZ
Type: Silent Type
Engine: Cumins
Engine Model: KTA19-G3A
Alternator: Original Stamford,China Stamford,Siemens,Faraday,Marathon,Leroysomer
Color: Clients' Requirement
Options: Automatic Transfer Switch,Silent Canopy,Mobile Trailer,Container
Control Panel: Deepsea / Harsen / Smartgen
Fuel Tank: 8-10 Hours Running Time
Cooling Method: Closed Water-cooled
Starting Method: DC 24V Electric Start
Basic Infomation
Certification: CE
Model Number: YAG-400GF, KTA19-G3A
Payment & Shipping Terms
Packaging Details: Wooden box
Supply Ability: 15000 Set/Sets per Year
Product Description
Product Description
Cummins diesel generator set adopts Dongfeng / Chongqing Cummins engine, which has the advantages of high reliability, easy maintenance, long continuous operation time and extra long working time.As the largest foreign investor in China's engine industry, Cummins has manufacturing enterprises in China, such as Dongfeng Cummins Engine Co., Ltd. (production of B, C and L Series) and Chongqing Cummins Engine Co., Ltd. (production of M, N and K Series), which are produced in accordance with Cummins global unified quality standards. Cummins global service network provides customers with reliable service guarantee.
Specification
Technical specification parameters of 400KW series diesel generator set
Unit model
YAG-400GF
Rated power
400KW
Rated output voltage
230V/400V
Rated power factor
0.8
Rated current
720A
Insulation grade
H
Rated speed
1500/1800rpm
Protection grade
IP22
Rated frequency
50/60HZ
Overall dimension (mm)
4300*1560*2310
Voltage Control Methods
AVR
Overall weight
4600KG
Technical specification parameters of diesel engine
Brand
Cummins
Model
KTA19-G3A
Cylinders
6
Speed
1500/1800rpm
Bore * stroke（mm)
159*159
Power
448KW
Displacement
18.93L
Fuel consumption rate
215g/kwh
Type
Straight line, four stroke
Lubrication mode
Pressure and splash type
Intake mode
Direct injection
Start-up mode
24V DC electric start
speed regulation
Electronic speed regulation
Cooling mode
Closed water cooling
Packing & Delivery
Company Profile
Weifang YAG Power Technology Co., Ltd. is a professional manufacturer of diesel engine, generator set and alternator which is integrated research and development, production, sales and service. The company covers an area of 50000 square meters, the workshop 30000 square meters, owns 5 diesel engine production lines, 3 generator set production lines, 2 alternator production lines, and 2 spare parts production lines. The annual production capacity of the company is 15000 diesel engines, 12000 motors and 10000 diesel generating sets. The company mainly produces Ricardo series diesel engines, which can be widely used in generator sets, construction machinery and other fields.  The generator set ensures the reliable quality of the generator set through the careful assembly and strict inspection. The generator set can also be assembled with engines and alternators of well-known brands. The company's products before delivery, through strict testing, to ensure that each product quality qualified. Through unremitting technical innovation, the company has also achieved fruitful results in many fields such as product noise reduction, energy saving, environmental protection and durability etc., and has been in a leading position among domestic generator set manufacturers in the same industry. The company takes the customer satisfaction as the purpose, unceasingly improves the product performance, always adheres to the quality first, the good faith as this management policy, has won the general customers' trust and the widespread praise. The company will continue to provide customers with more cooperation and services.
Customer Photos
Why Choose Us

Advantages

1. Ten years dedicated in diesel generator with rich experience.
2. 7-15 days quick delivery, annual output 50,000 sets.
3. Competitive price, huge material/parts sourcing, large scale production.
4. Lower noise 70-73db at 7m, super silent as 60-65db at 7m.
5. Spare parts and consumable service available.
6. One-year warranty.
7. Customized & OEM available.
8. One stop and 7x24 service.
9. Excellent technical support and service.

Quality & Testing

1. All the raw materials/parts by IQC (Incoming Quality Control) before launch into process.
2. Each generator/part under control of IPQC (Input Process Quality Control).
3. Each generator/part must be pass 100% inspection between process.
4. All-sided ex-factory testing in various condition (Outgoing Quality Control), test items as following.
>Loading test in 0%, 25%, 50%, 75%, 100%
>Heat run test
>Insulation resistance test
>Frequently starting test
>Alarm and timing relays test
FAQ
Q1: Are you a manufactory or trade company?
A1: We are the Manufactory specialized in diesel generator set industry for many years already. Annual output 50,000 sets, products/service reach 40 countries and regions.
Q2: How to control quality?
A2: 1) All the raw materials/parts by IQC (Incoming Quality Control) before launch into the process.
2) Each process under control of IPQC (Input Process Quality Control).
3) Each generator set/part must be pass 100% inspection between process.
4) All-sided ex-factory testing in various condition (Outgoing Quality Control).
Q3. How about your price level?
A3: Our price is reasonable which is based on quality and cost.
And it’s negotiable which based on quality or exact demands. It’ll be much helpful if more details could be provide when you make
an inquiry.
Q4: Delivery time?
A4: 7-15 days after deposit received.
Most of diesel generator sets/parts with stock, we can make delivery immediately or make out in short time.
Q5. How about MOQ?
A5: MOQ as 1 set.
Q6. OEM/Customized available?
A6: Welcome, generator set could be customized made according to client demands.
Own design/LOGO on generator set available as well.
Q7. Payment term?
A7: 30% T/T as deposit, balance should be release 10 days before shipment.
Or 100% L/C at sight.
